Ppgi Roof Tile And Ibr Sheet 7.5kw Double Layer Roll Forming Machine
Product Details:
Place of Origin: CHINA
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: nude
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 157
Contact Now
Detailed Product Description
Machine For: Makeing Roof Tile Material: Ppgl Pr Ppgi
Roof Model: Tile And Ibr Power: 7.5kw
Speed: 10 M/min Warranty: 1 Year
High Light:

ibr sheet roll forming machine

,

Ppgi Roof Tile roll former

PPGI Roof Tile And Ibr Sheet Double Layer Roll Forming Machine







Profile
Energy Saving Glazed Tile Roll Forming Machine 5 KW Low Power Consumption 0

Specification
No. Item Description
1 material Coil Galvalume, Galvanized, PPGI, Aluminum
2 Raw Material Thickness 23-30 GA
3 Working Speed 6-8 m/min ( not including the cutting time)
4 Roller Station 16 Raws
5 Dimension (L*W*H) 7500 mm*1500 mm*1500 mm
6 Machine Weight 5800 KG
7 Electrical Control System Panasonic PLC (can be customized)
8 Drive Motor Power 7 KW
9 Hydraulic Station Power 5 KW
10 Power Supply 240V, 60HZ, 3 PHASES(can be customized)
11 Cutting Accuracy ±1 mm
12 Driving way Single Chain 1 inch
13 Material of Shaft and diameter 75 mm 45#steel forged
14 Material of Roller 45# Steel Finish Machining, Plated Hard



Structure introduction
(1) Manual uncoiler
It is used to support the steel coil and realize the uncoiling by means of rotatory movement. The steel coil is uncoiled manually. The capacity of this uncoiler is 5 Ton, and it is capable for most of the cases. This equipment is suitable to process the steel coils with 508mm of ID.



(2) Feeding
Receiving the raw material (steel sheet), it guarantees the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation for knowing the function of locate angle iron.


(3) Machine material
In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, heat treatment.
Roller material: bearing steel with heat treatment



(4) Shearing mechanism
It adopts hydraulic station and automatic cut to length system to realize the stably cutting of certain length of products.Material of the cutting blades: GCr12, processed by heat treatment



(5) Hydraulic system
It is derived by a Gear Pump. After filling the hydraulic oil into the hydraulic oil tank, the pump could drive the hydraulic cylinder to realize the cutting function.
The system includes a set of hydraulic tank, a set of a Gear Pump, two hydraulic pipes .and two sets of Solenoid Valves.
Hydraulic oil :40#





Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms

30% in advance as down payment
70% before shipping and loading.

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.





machine size  10 meter
spare   yes
how to control  instruction book
voltage  do as your country voltage
if can provide service oversea   yes, we can

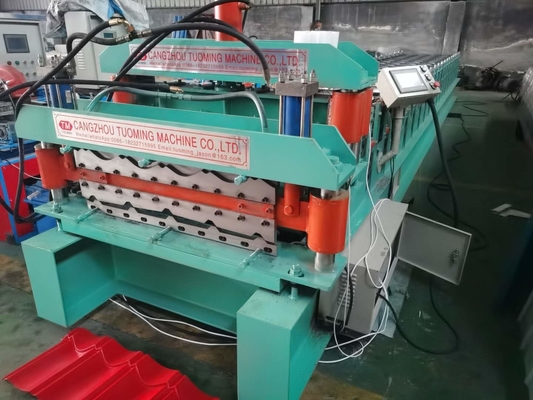

Ppgi Roof Tile And Ibr Sheet 7.5kw Double Layer Roll Forming Machine 1

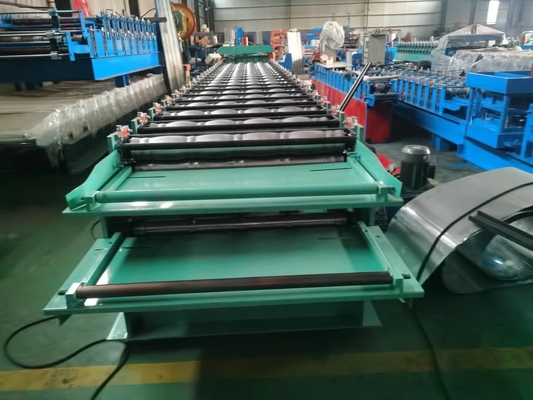

Ppgi Roof Tile And Ibr Sheet 7.5kw Double Layer Roll Forming Machine 2

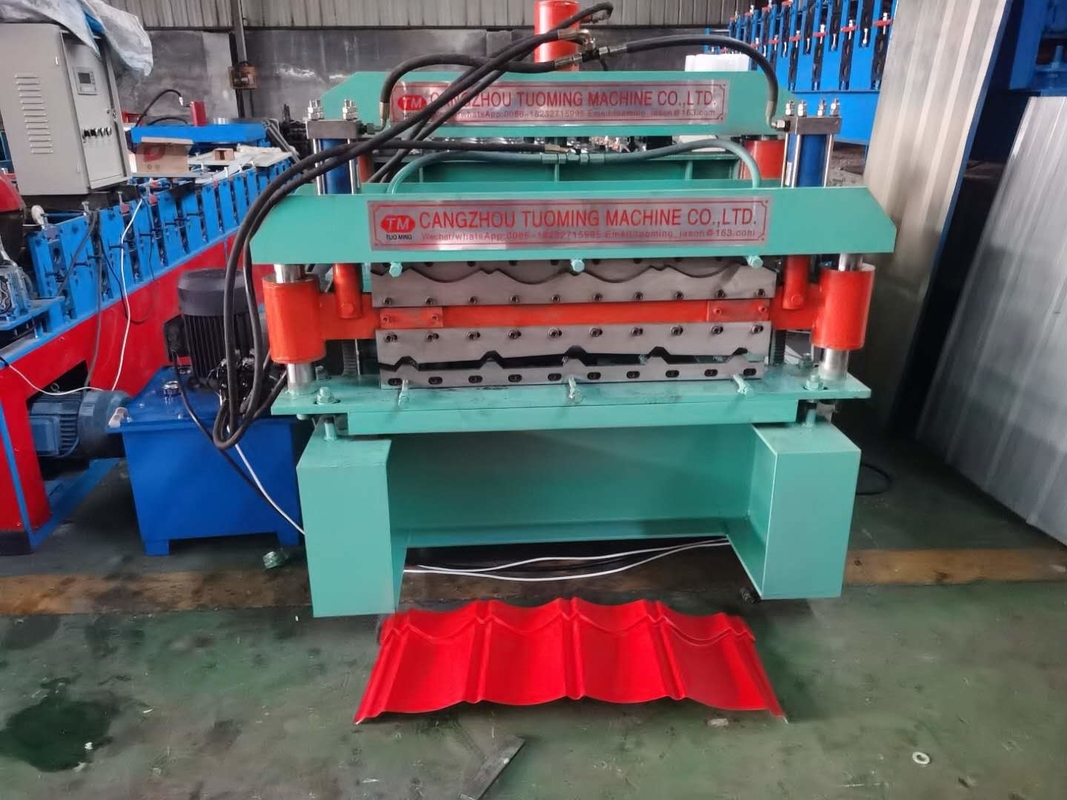

Ppgi Roof Tile And Ibr Sheet 7.5kw Double Layer Roll Forming Machine 3

    We done the roof machine many years, our machine use iron material for product , so the roof sheet is iron sheet . material



include PPGI or PPGL or aluminum or galvanized sheet or stainless  and so on . the machine above we post is double layer machine.



it can make tile and ibr sheet in one machine, it include 2 units moulds , the mould mean rollers for forming.  mostly we design machine



according to customer's drawing or sample because every customer have different model and requirements. Please trust us , we provide



best machines and best service. thanks
