Detailed Product Description
Machine Model: Double Deck Roof Model: Tile And Ibr
Power: 5.5kw Size: 9 Meter *1.8m*1.6m
Shipping: Include Warranty: 1 Year
High Light:

ibr roll forming machine

,

ibr sheet roll forming machine

,

ibr roof sheet forming machine

Double Deck Roof Tile And IBR Roll Forming Machine With Material Cutting



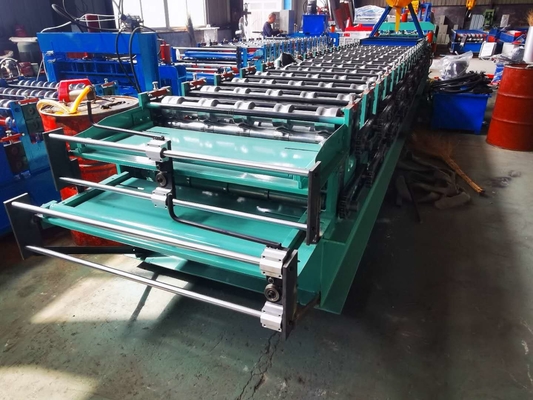

Double Deck Roof Tile 5.5kw Ibr Making Machine With Material Cutting 0





Specification
No. Item Description
1 Coil Galvalume, Galvanized, PPGI, Aluminum
2 Raw Material Thickness 0.3-0.8mm  or 20-30 GA
3 Working Speed 6-8 m/min ( not including the cutting time)
4 Roller Station 16 Raws
5 Dimension (L*W*H) 7500 mm*1500 mm*1500 mm
6 Machine Weight 5800 KG
7 Electrical Control System Panasonic PLC (can be customized)
8 Drive Motor Power 5.5kw KW
9 Hydraulic Station Power 4 KW
10 voltage 220V, 60HZ, 3 PHASES(can be customized)
11 Cutting Accuracy ±2 mm
12 Driving Mode Single Chain 1.5 inch
13 Material of Shaft 75 mm 45#steel forged
14 Material of Roller 45# Steel Finish Machining, Plated Hard



Structure introduction
(1) Manual uncoiler
It is used to support the steel coil and realize the uncoiling by means of rotatory movement. The steel coil is uncoiled manually. The capacity of this uncoiler is 5 Ton, and it is capable for most of the cases. This equipment is suitable to process the steel coils with 508mm of ID.



(2) Feeding
Receiving the raw material (steel sheet), it guarantees the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation for knowing the function of locate angle iron.


(3) Machine material
In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, heat treatment.
Roller material: bearing steel with heat treatment



(4) Shearing mechanism
It adopts hydraulic station and automatic cut to length system to realize the stably cutting of certain length of products.Material of the cutting blades: GCr12, processed by heat treatment



(5) Hydraulic system
It is derived by a Gear Pump. After filling the hydraulic oil into the hydraulic oil tank, the pump could drive the hydraulic cylinder to realize the cutting function.
The system includes a set of hydraulic tank, a set of a Gear Pump, two hydraulic pipes .and two sets of Solenoid Valves.
Hydraulic oil :40#





Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms

40%  deposit before product
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 35 days after the down payment is received.







use  machine use for product metal roof sheet
power  electric
motor  5.5kw , 3 phase ,380v/440v/415v/240v
 install install instruction or engineer service
control language  english or others



Double Deck Roof Tile 5.5kw Ibr Making Machine With Material Cutting 1

Double Deck Roof Tile 5.5kw Ibr Making Machine With Material Cutting 2

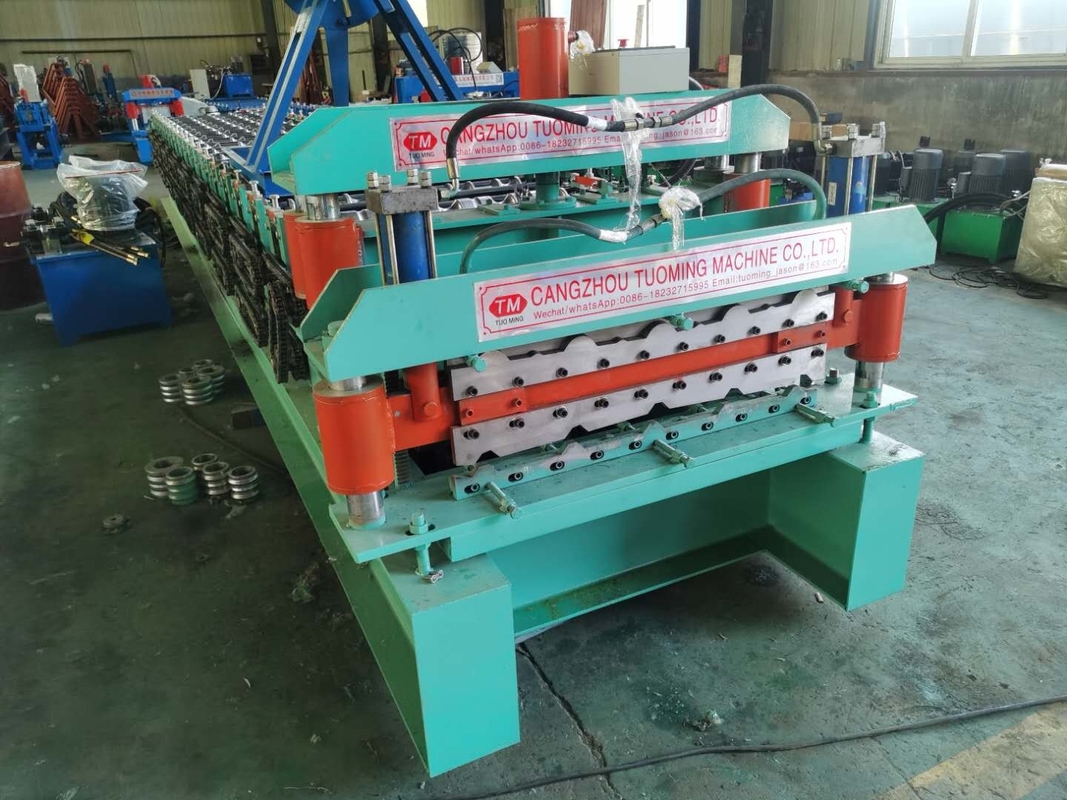

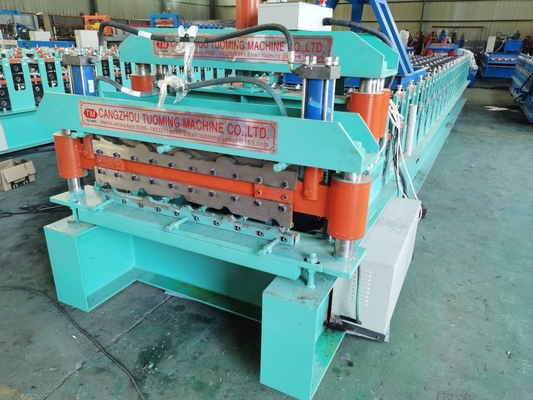

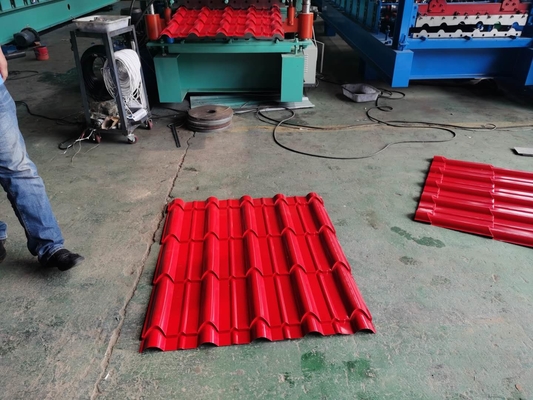

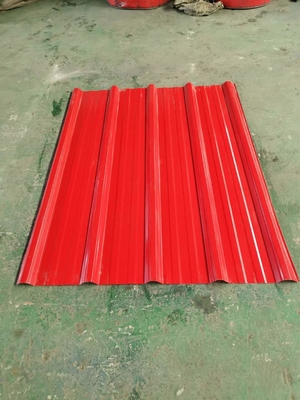

         This is double deck roll forming machine , up deck is 800mm tile ,low deck is ibr sheet , both decks all need feeding 1000mm

coil material, the material thickness range is 0.3mm to 0.8mm.  the tile cna use for roof sheet and most popular in arica countries.



such as the house and villa or cottage.the material you can choice the colour you need such as bule or red or white. you need 1 -2

worker for ocntrol the machine.
